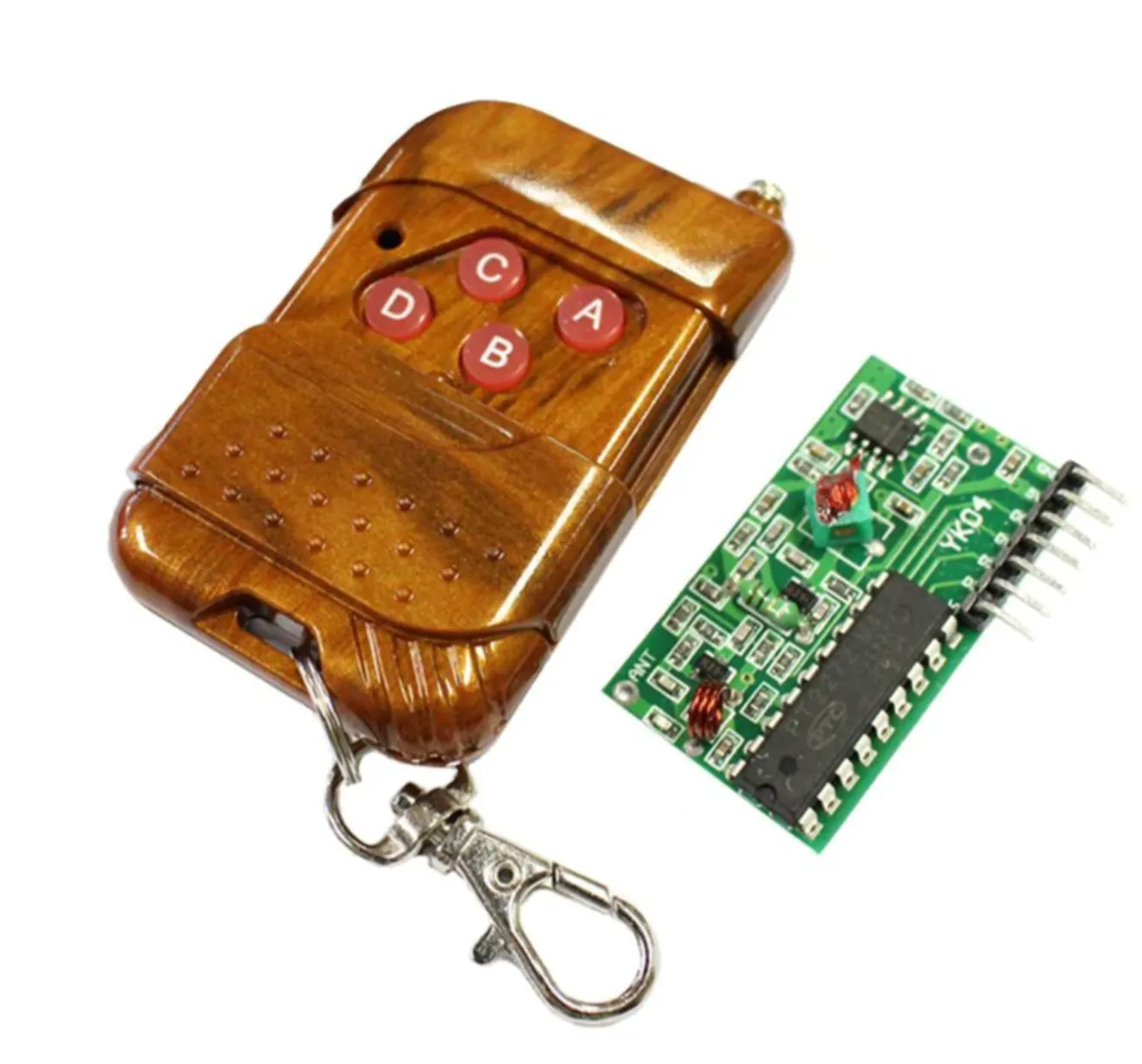

This module makes wireless control very easy! You can use this with an Arduino to give orders from a far distance using a 4-button RF remote control.
SPECIFICATIONS:

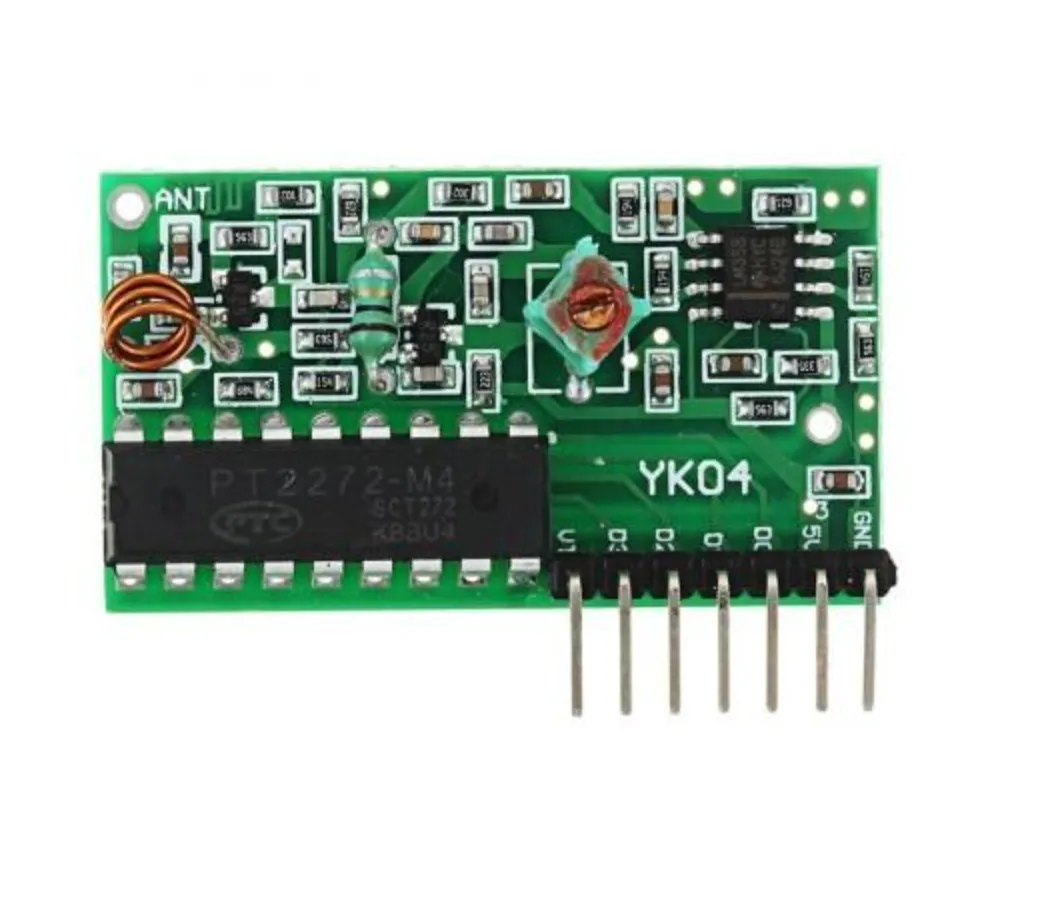

With decoding receiver board: - Working frequency: 315M - Operating voltage: DC5V - Operating current: ≤3mA(5.0VDC) - Working principle: super regeneration - Modulation method: ASK - Encoding chip: SC2272 (PT2272, PT2294), chip compatible - Sensitivity: better than -105dBm (50Ω) - Output signal: non-lock (M)

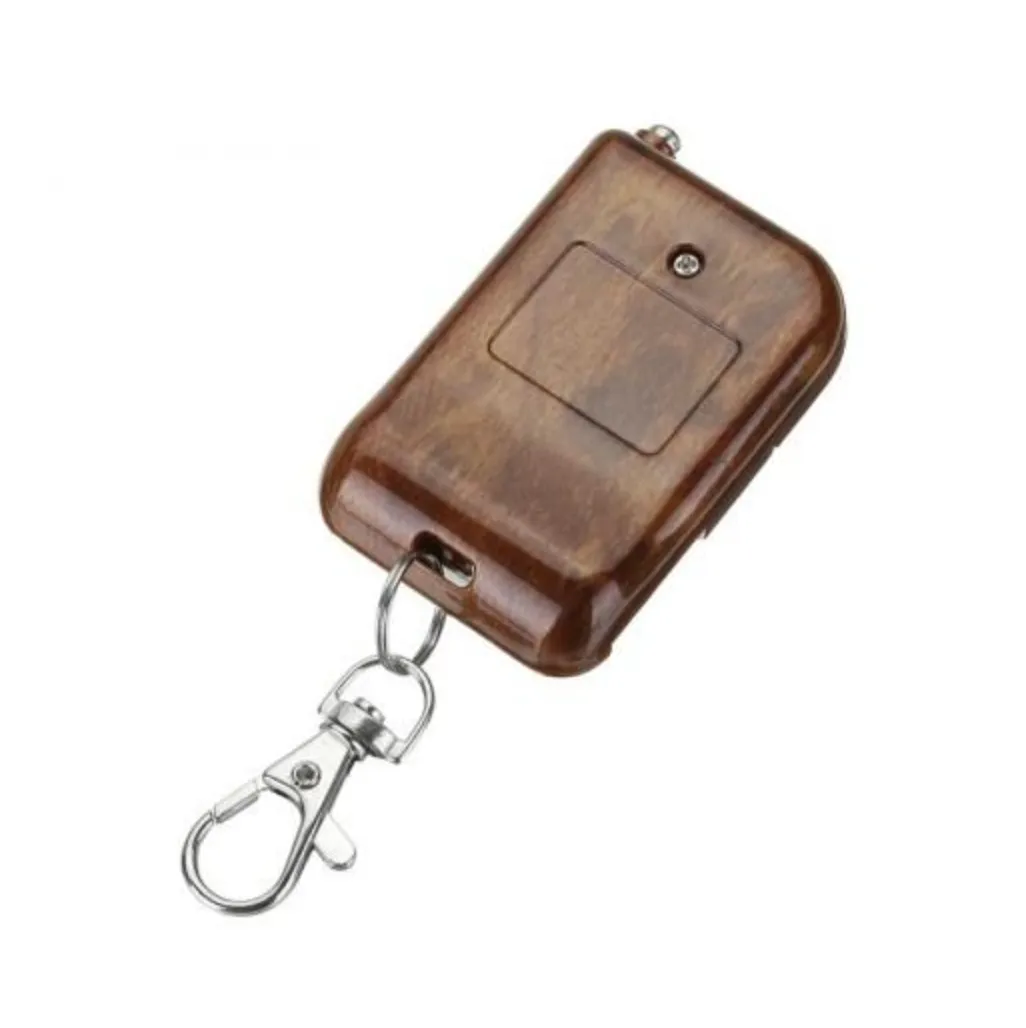

Remote control: - Operating voltage: DC12V (27A/12V battery x1) - Operating Current: 10mA @ 12V - Radiated power: 10mw @ 12V - Modulation mode: ASK (Amplitude Modulation) - Transmitting frequency: 315MHZ - Transmission distance :50-100M (Open field, the receiver sensitivity of -100dbm) - Encoder types: fixed code
Remote control: - Operating voltage: DC12V (27A/12V battery x1) - Operating Current: 10mA @ 12V - Radiated power: 10mw @ 12V - Modulation mode: ASK (Amplitude Modulation) - Transmitting frequency: 315MHZ - Transmission distance :50-100M (Open field, the receiver sensitivity of -100dbm) - Encoder types: fixed code
